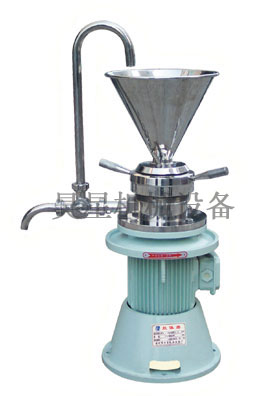

Vertical JM-L

Vertical JM-L Performance Characteristic:

This product has new, the contour practical and so on many patents, the contour is novel, overall health, environmental protection energy conservation.
This product execution country standard GB/T 14,466 and enterprise standard Q/WSS01-2004, is the domestic origination.
This product for the hygienic level whole stainless die, uses SUS304 or the 316L material quality with the material contact.
This product matches the vertical type motor, organism and the electrical machinery joined bodies coaxial structure, therefore calls continually the writing style colloid mill.
This product is equipped with the platoon to suppose keeps off the water plate, the operation use simply, installs the maintenance conveniently, the volume is small and so on the characteristic.
Grinds, the smashing, the emulsification, the mix, the disperser for the wet type ultramicron, isotropically, stirs the contour effect function.
Is suitable in each kind of liquid state shape medium material, the processing material sticks the density to be supposed to be smaller than 10,000 centipoise medium.
May defer to the customer to process nature special request and so on material different acidity, alkalinity, thick thickness has custom-made the production.
May replace and surpass the stone mill, the sand blast machine, the ball mill, the breast is uniform, stamp mill work and so on machine, mulser, three rollers machine.

Technical parameter a:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-L250b	2-50	5-20	Ø250	Ø125	Ø60	Ø12	2900	15-22	700×550×1180	300
JM-L200b	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	15	600×440×1180	230
JM-L200a	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	11	600×440×1180	225
JM-L200	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	7.5	600×440×950	185
JM-L180	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	7.5	600×440×950	175
JM-L140	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	580×440×930	165
JM-L130	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	5.5	600×430×810	160
JM-L120	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	600×430×810	155
JM-L100	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	580×430×930	150
JM-L80	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	430×410×850	90
JM-L65	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	460×340×800	68
JM-L60	2-50	0.01-0.2	Ø60	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38
JM-L50a	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	0.75	420×280×730	38
JM-L50b	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	1.1	420×280×730	36
JM-L50c	2-50	0.01-0.05	Ø50	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38

Technical parameter b:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-L250b-1	2-50	5-20	Ø250	Ø125	Ø60	Ø12	2900	15-22	700×550×1180	300
JM-L200b-1	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	15	600×440×1180	230
JM-L200a-1	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	11	600×440×1180	225
JM-L200-1	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	7.5	600×440×950	185
JM-L180 -1	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	7.5	600×440×950	175
JM-L140 -1	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	580×440×930	165
JM-L130 -1	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	5.5	600×430×810	160
JM-L120 -1	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	600×430×810	155
JM-L100 -1	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	580×430×930	150
JM-L80 -1	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	430×410×850	90
JM-L65 -1	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	460×340×800	68
JM-L60 -1	2-50	0.01-0.2	Ø60	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38
JM-L50a -1	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	0.75	420×280×730	38
JM-L50b -1	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	1.1	420×280×730	36
JM-L50c -1	2-50	0.01-0.05	Ø50	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38

Technical parameter c:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-L250b-2	2-50	5-20	Ø250	Ø125	Ø60	Ø12	2900	15-22	700×550×1180	320
JM-L200b-2	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	15	600×440×1180	260
JM-L200a-2	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	11	600×440×1180	255
JM-L200 -2	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	7.5	600×440×950	185
JM-L180 -2	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	7.5	600×440×950	175
JM-L140 -2	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	580×440×930	165
JM-L130 -2	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	5.5	600×430×810	160
JM-L120 -2	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	600×430×810	155
JM-L100 -2	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	580×430×930	150
JM-L80 -2	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	430×410×850	90
JM-L65 -2	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	460×340×800	68
JM-L60 -2	2-50	0.01-0.2	Ø60	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38
JM-L50a -2	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	0.75	420×280×730	38
JM-L50b -2	2-50	0.01-0.05	Ø50	Ø25	Ø15	No cooling	2900	1.1	420×280×730	36
JM-L50c -2	2-50	0.01-0.05	Ø50	Ø25	Ø15	Ø8	2900	1.1	420×280×730	38

Special precautions:

In the processing material does not allow to mix has the quartz sand, the glass fragments, the sweepings and so on the hard matter, strictly prohibits entering the colloid mill processing production.
It start, close it and can't start the machine before not washing, after the colloidal to rub there aren't organism , forbid dallying and reversing. Otherwise operate improper to can damage hard quality mechanical package or quiet mill , move mill or take place leakage burn electrical machinery ,etc. trouble seriously.
The product when does not affect the basic structure and the performance improvement, not separate informs even slightly. The product and the edition counterfeit must investigate (2,004 edition)
