[Popular type]



High-quality

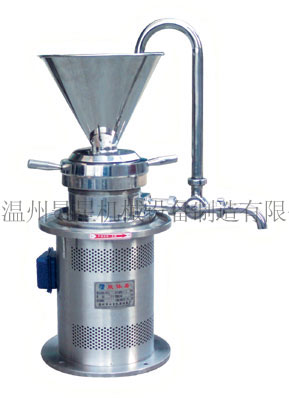

Small experiment colloid mill Performance Characteristic:

  • This product has new, the contour practical and so on many patents, the contour is novel, overall health, environmental protection energy conservation.

  • This product execution country standard GB/T 14,466 and enterprise standard Q/WSS01-2004, is the domestic origination.

  • This product high-quality [ overall stainless steel health level ] or the popular type [ organism uses stainless steel ] .

  • This product matches the vertical type motor, organism and the electrical machinery joined bodies coaxial structure, therefore calls continually the writing style colloid mill.

  • This product is equipped with the platoon to suppose keeps off the water plate, the operation use simply, installs the maintenance conveniently, the volume is small and so on the characteristic.

  • Grinds, the smashing, the emulsification, the mix, the disperser for the wet type ultramicron, isotropically, stirs the contour effect function.

  • Is suitable in each kind of liquid state shape medium material, the processing material sticks the density to be supposed to be smaller than 10,000 centipoise medium.

  • May defer to the customer to process nature special request and so on material different acidity, alkalinity, thick thickness has custom-made the production.
  • ay replace and surpass the stone mill, the sand blast machine, the ball mill, the breast is uniform, stamp mill work and so on machine, mulser, three rollers machine.

Technical parameter a:

Main technical parameter

Degree of emulsification (um)

Change according to nature of the supplies
(T/h)

Mill Diameter
(mm)

Import diameter
(mm)

Export diameter

(mm)

Cooling circulation external diameter
(mm)

Main rotational speed
(r/min)

Power
(Kw)

External dimension
(Long×Wide ×High)

Weight(Kg)

Name

Type

High-quality

Vertical

JM-LB80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

3

430×410×850

90

JM-LB65

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×800

68

JM-LB60

2-50

0.01-0.2

Ø60

Ø25

Ø15

Ø8

2900

1.1

420×280×730

42

JM-LB50a

2-50

0.01-0.05

Ø50

Ø25

Ø15

No cooling single-phasly

2900

0.75

420×280×730

38

JM-LB50b

2-50

0.01-0.05

Ø50

Ø25

Ø15

No cooling

2900

1.1

420×280×730

36

JM-LB50c

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×730

38

Divide body

JM-FB80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×810

105

JM-FB65

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

1.5/2.2

720×350×780

90

JM-FB60

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×750

70

JM-FB50c

2-50

0.01-0.05

Ø50

Ø45

Ø20

Ø8

2900

1.1

700×300×750

65

Popular type

Divide body

JM-F80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×810

110

JM-F65

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

2.2

720×350×780

95

JM-F60

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×750

70

Vertical

JM-L80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

2.2/3

430×410×850

90

JM-L65

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×800

68

JM-L60

2-50

0.02-0.2

Ø60

Ø32

Ø18

Ø8

2900

1.1

470×350×750

45

JM-L50a

2-50

0.01-0.05

Ø50

Ø25

Ø15

No cooling single-phasly

2900

0.75/1.1

420×280×730

38

JM-L50b

2-50

0.01-0.05

Ø50

Ø25

Ø15

No cooling

2900

1.1

420×280×730

36

JM-L50c

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×730

38

Technical parameter b:

Main technical parameter

Degree of emulsification (um)

Change according to nature of the supplies
(T/h)

Mill Diameter
(mm)

Import diameter
(mm)

Export diameter

(mm)

Cooling circulation external diameter
(mm)

Main rotational speed
(r/min)

Power
(Kw)

External dimension
(Long×Wide ×High)

Weight(Kg)

Name

Type

High-quality

Vertical

JM-LB80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

3

430×410×850

90

JM-LB65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×800

68

JM-LB60-2

2-50

0.01-0.2

Ø60

Ø25

Ø15

Ø8

2900

1.1

420×280×730

42

JM-LB50c-2

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×730

38

Divide body

JM-FB80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×810

105

JM-FB65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

1.5/2.2

720×350×780

90

JM-FB60-2

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×750

70

JM-FB50c-2

2-50

0.01-0.05

Ø50

Ø45

Ø20

Ø8

2900

1.1

700×300×750

65

Popular type

Divide body

JM-F80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×810

110

JM-F65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

2.2

720×350×780

95

JM-FB60-2

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×750

70

Vertical

JM-L80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

2.2/3

430×410×850

90

JM-L65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×800

68

JM-L60-2

2-50

0.02-0.2

Ø60

Ø32

Ø18

Ø8

2900

1.1

470×350×750

45

JM-L50c-2

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×730

38

Technical parameter c:

Main technical parameter

Degree of emulsification (um)

Change according to nature of the supplies
(T/h)

Mill Diameter
(mm)

Import diameter
(mm)

Export diameter

(mm)

Cooling circulation external diameter
(mm)

Main rotational speed
(r/min)

Power
(Kw)

External dimension
(Long×Wide ×High)

Weight(Kg)

Name

Type

High-quality

Vertical

JM-LBF80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

3

430×410×1000

90

JM-LBF65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×1000

68

JM-LBF60-2

2-50

0.01-0.2

Ø60

Ø25

Ø15

Ø8

2900

1.1

420×280×930

42

JM-LBF50c-2

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×930

38

Divide body

JM-FBF80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×1110

105

JM-FBF65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

1.5/2.2

720×350×1080

90

JM-FBF60-2

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×950

70

JM-FBF50c-2

2-50

0.01-0.05

Ø50

Ø45

Ø20

Ø8

2900

1.1

700×300×950

65

Popular type

Divide body

JM-FF80

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

1700-3500

4

700×340×1110

110

JM-FF65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

1700-3500

2.2

720×350×980

95

JM-FF60-2

2-50

0.02-0.2

Ø60

Ø45

Ø20

Ø8

2900

1.1

700×300×950

70

Vertical

JM-LF80-2

2-50

0.5-1

Ø80

Ø47

Ø20

Ø12

2900

2.2/3

430×410×1050

90

JM-LF65-2

2-50

0.2-0.5

Ø65

Ø47

Ø20

Ø8

2900

1.5/2.2

460×340×1000

68

JM-LF60-2

2-50

0.02-0.2

Ø60

Ø32

Ø18

Ø8

2900

1.1

470×350×950

45

JM-LF50c-2

2-50

0.01-0.05

Ø50

Ø25

Ø15

Ø8

2900

1.1

420×280×930

38

Special precautions:

  • In the processing material does not allow to mix has the quartz sand, the glass fragments, the sweepings and so on the hard matter, strictly prohibits entering the colloid mill processing production.

  • It start, close it and can't start the machine before not washing, after the colloidal to rub there aren't organism , forbid dallying and reversing. Otherwise operate improper to can damage hard quality mechanical package or quiet mill , move mill or take place leakage burn electrical machinery ,etc. trouble seriously.

  • The product when does not affect the basic structure and the performance improvement, not separate informs even slightly. The product and the edition counterfeit must investigate (2,004 edition)
