Horizontal JM-W（Individual）

Horizontal JM-W（Individual）Performance Characteristic：

This product has new, the contour practical and so on many patents, the contour is novel, overall health, environmental protection energy conservation.
This product execution country standard GB/T 14,466 and enterprise standard Q/WSS01-2004, is the domestic origination.
This product organism spot and the material contact part use the stainless steel material. Rack and electric motor steel and iron paint.

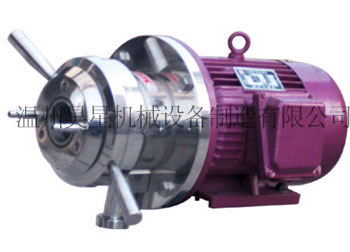

This product matches the horizontal motor, organism and the electrical machinery joined bodies same axle center rotation structure. Therefore calls the horizontal-type colloid mill.
This product design new, operation use simple, installs the maintenance conveniently, the volume is small, the efficiency higher characteristic.
Grinds, the smashing, the emulsification, the mix, the disperser for the wet type ultramicron, isotropically, stirs the contour effect function.
Is suitable in each kind of liquid state shape medium material, the processing material sticks the density to be supposed to be smaller than 10,000 centipoise medium.
May defer to the customer to process nature special request and so on material different acidity, alkalinity, thick thickness has custom-made the production.
May replace and surpass the stone mill, the sand blast machine, the ball mill, the breast is uniform, stamp mill work and so on machine, mulser, three rollers machine.

Technical parameter a:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-WB500A	2-50	5-50	Ø500	Ø150	Ø80	Ø12	1450-2900	55-200	1400×550×700	590
JM-WB400A	2-50	5-40	Ø400	Ø150	Ø80	Ø12	1450-2900	45-160	1400×600×700	500
JM-WB350A	2-50	5-35	Ø350	Ø125	Ø80	Ø12	1450-2900	37-45	1400×600×650	480
JM-WB320A	2-50	5-30	Ø320	Ø125	Ø80	Ø12	2900	37	1300×550×600	470
JM-WB320Aa	2-50	5-32	Ø320	Ø125	Ø80	Ø12	2900	45	1300×600×600	510
JM-WB250Aa	2-50	2-20	Ø250	Ø125	Ø60	Ø12	2900	30	1300×550×550	355
JM-WB250Ab	2-50	2-20	Ø250	Ø125	Ø60	Ø12	2900	37	1200×550×550	395
JM-WB200Aa	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	15	1150×450×450	210
JM-WB200Ab	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	22	1150×450×450	235
JM-WB200Ac	2-50	2-12	Ø200	Ø100	Ø50	Ø12	2900	30	1150×450×450	292
JM-WB180Aa	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	11	1150×450×450	170
JM-WB180Ab	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	15	1150×450×450	195
JM-WB180Ac	2-50	2-7	Ø180	Ø90	Ø40	Ø12	2900	22	1150×450×100	200
JM-WB140Aa	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	1100×370×370	140
JM-WB140Ab	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	11	1100×370×370	172
JM-WB140Ac	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	15	1100×370×370	185
JM-WB130A	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	7.5	1000×360×360	138
JM-WB120A	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	980×360×360	132
JM-WB100A	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	850×350×350	130
JM-WB90A	2-50	0.5-1	Ø90	Ø50	Ø20	Ø12	2900	4	730×380×360	95
JM-WB80A	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	730×380×360	85
JM-WB65A	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	520×250×250	65
JM-WB60A	2-50	0.02-0.2	Ø60	Ø32	Ø18	Ø8	2900	1.1	500×230×230	38

Technical parameter b:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-W500A-2	2-50	10-50	Ø500	Ø150	Ø80	Ø12	1450-2900	45-200	1300×650×1300	620
JM-W400A-2	2-50	10-40	Ø400	Ø150	Ø80	Ø12	1450-2900	37-200	1200×650×1300	580
JM-W350A-2	2-50	6-35	Ø350	Ø125	Ø80	Ø12	1450-2900	37-55	1300×600×700	490
JM-W320A-2	2-50	6-30	Ø320	Ø125	Ø80	Ø12	2900	37	1300×600×700	450
JM-W320Aa-2	2-50	6-30	Ø320	Ø125	Ø80	Ø12	2900	45-55	1300×600×700	500
JM-W250Aa-2	2-50	5-20	Ø250	Ø125	Ø60	Ø12	2900	30	1200×450×550	355
JM-W250Ab-2	2-50	5-20	Ø250	Ø125	Ø60	Ø12	2900	37	1200×450×550	395
JM-W200Aa-2	2-50	5-10	Ø200	Ø100	Ø50	Ø12	2900	15	1150×450×510	210
JM-W200Ab-2	2-50	4-10	Ø200	Ø100	Ø50	Ø12	2900	22	1150×450×510	235
JM-W200Ac-2	2-50	4-12	Ø200	Ø100	Ø50	Ø12	2900	30	1150×450×450	292
JM-W180Aa-2	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	11	1000×450×450	170
JM-W180Ab-2	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	15	1000×450×450	195
JM-W180Ac-2	2-50	2-8	Ø180	Ø90	Ø40	Ø12	2900	22	1000×450×100	200
JM-W140Aa-2	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	980×370×370	140
JM-W140Ab-2	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	11	980×370×370	172
JM-W140Ac-2	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	15	980×370×370	185
JM-W130A-2	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	7.5	930×360×360	138
JM-W120A-2	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	880×360×360	132
JM-W100A-2	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	750×350×350	130
JM-W90A-2	2-50	0.5-1	Ø90	Ø50	Ø20	Ø12	2900	4	730×380×360	95
JM-W80A-2	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	730×380×360	85
JM-W65A-2	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	520×250×250	65
JM-W60A-2	2-50	0.02-0.2	Ø60	Ø32	Ø18	Ø8	2900	1.1	500×230×230	38

Technical parameter c:

Main technical parameter	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
Type	Degree of emulsification(um)	Change according to nature of the supplies (T/h)	Mill Diameter (mm)	Import diameter (mm)	Export diameter (mm)	Cooling circulation external diameter (mm)	Main rotational speed (r/min)	Power (Kw)	External dimension (Long×Wide ×High)mm	Weight (Kg)
JM-WB500A	2-50	5-50	Ø500	Ø150	Ø80	Ø12	1450-2900	55-200	1400×550×700	590
JM-WB400A	2-50	5-40	Ø400	Ø150	Ø80	Ø12	1450-2900	45-160	1400×600×700	500
JM-WB350A	2-50	5-35	Ø350	Ø125	Ø80	Ø12	1450-2900	37-45	1400×600×650	480
JM-WB320A	2-50	5-30	Ø320	Ø125	Ø80	Ø12	2900	37	1300×550×600	470
JM-WB320Aa	2-50	5-32	Ø320	Ø125	Ø80	Ø12	2900	45	1300×600×600	510
JM-WB250Aa	2-50	2-20	Ø250	Ø125	Ø60	Ø12	2900	30	1300×550×550	355
JM-WB250Ab	2-50	2-20	Ø250	Ø125	Ø60	Ø12	2900	37	1200×550×550	395
JM-WB200Aa	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	15	1150×450×450	210
JM-WB200Ab	2-50	2-10	Ø200	Ø100	Ø50	Ø12	2900	22	1150×450×450	235
JM-WB200Ac	2-50	2-12	Ø200	Ø100	Ø50	Ø12	2900	30	1150×450×450	292
JM-WB180Aa	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	11	1150×450×450	170
JM-WB180Ab	2-50	2-6	Ø180	Ø90	Ø40	Ø12	2900	15	1150×450×450	195
JM-WB180Ac	2-50	2-7	Ø180	Ø90	Ø40	Ø12	2900	22	1150×450×100	200
JM-WB140Aa	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	7.5	1100×370×370	140
JM-WB140Ab	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	11	1100×370×370	172
JM-WB140Ac	2-50	1-4	Ø140	Ø66	Ø32	Ø12	2900	15	1100×370×370	185
JM-WB130A	2-50	0.7-3	Ø130	Ø65	Ø30	Ø12	2900	7.5	1000×360×360	138
JM-WB120A	2-50	0.7-2.5	Ø120	Ø65	Ø30	Ø12	2900	5.5	980×360×360	132
JM-WB100A	2-50	0.5-2	Ø100	Ø65	Ø30	Ø12	2900	5.5	850×350×350	130
JM-WB90A	2-50	0.5-1	Ø90	Ø50	Ø20	Ø12	2900	4	730×380×360	95
JM-WB80A	2-50	0.5-1	Ø80	Ø47	Ø20	Ø12	2900	3	730×380×360	85
JM-WB65A	2-50	0.2-0.5	Ø65	Ø47	Ø20	Ø8	2900	2.2	520×250×250	65
JM-WB60A	2-50	0.02-0.2	Ø60	Ø32	Ø18	Ø8	2900	1.1	500×230×230	38

Special precautions:

In the processing material does not allow to mix has the quartz sand, the glass fragments, the sweepings and so on the hard matter, strictly prohibits entering the colloid mill processing production.
It start, close it and can't start the machine before not washing, after the colloidal to rub there aren't organism , forbid dallying and reversing. Otherwise operate improper to can damage hard quality mechanical package or quiet mill , move mill or take place leakage burn electrical machinery ,etc. trouble seriously.
The product when does not affect the basic structure and the performance improvement, not separate informs even slightly. The product and the edition counterfeit must investigate (2,004 edition)
