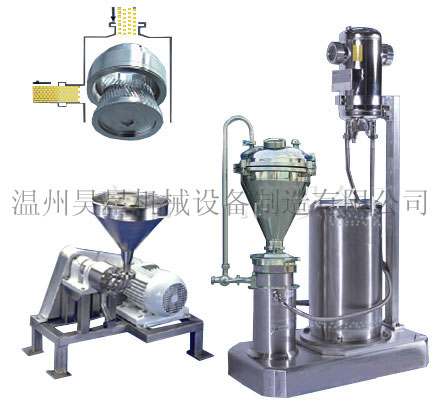

Multi grinding machine GMC
- Have a utility model patents, played tight structure, form new, the overall compact, environmental protection and energy saving.
- The implementation of the national standard GB / T 14466 and SINOSTARS enterprise standards Q/WSS01-2004, is a national initiative.
- Body parts and materials, contact parts are made of stainless steel materials. Rack and electrical steel paint.
- Equipped with horizontal motor, body and motor One-piece construction with the axis of rotation. It is called Horizontal Colloid Mill; the use of piped connection method: flange, screw, quick clamp, quick, said living next thread pipelined Colloid Mill.
- Designing new, operation using a simple, convenient installation and maintenance, small size and high efficiency.
- Ultrafine particles for the wet grinding, crushing, emulsifying, mixing, dispersing, homogenizing, mixing and other high-performance features.
- Applicable to all types of emulsion liquid or paste media materials, processing materials, the density of 5000-10000 centipoise viscosity of the medium.
- Processing of materials in accordance with customers of different acidity, alkalinity, stiffness and other properties of special requests customization.
Multi-functional grinding machine GMC Series HAOSTARS COLLOIDS MILL pairs of cooling can be an empty transition Performance Table:
Specifications |
Emulsion fineness(um) |
According to nature of material change (output) |
Disc Diameter |
Import diameter |
Outlet diameter |
Cooling loop pipe connection diameter |
Main speed |
Motor |
Dimensions |
Weight |
JM-GMC500-2 |
2-50 |
10-50 |
Ø500 |
Ø150 |
Ø80 |
Ø12 |
1450-2900 |
45-200 |
1300×650×1300 |
620 |
JM-GMC 400-2 |
2-50 |
10-40 |
Ø400 |
Ø150 |
Ø80 |
Ø12 |
1450-2900 |
37-200 |
1200×650×1300 |
580 |
JM-GMC 350-2 |
2-50 |
6-35 |
Ø350 |
Ø125 |
Ø80 |
Ø12 |
1450-2900 |
37-55 |
1300×600×1200 |
490 |
JM-GMC 320-2 |
2-50 |
6-30 |
Ø320 |
Ø125 |
Ø80 |
Ø12 |
2900 |
37 |
1300×600×1200 |
450 |
JM-GMC 320a-2 |
2-50 |
6-30 |
Ø320 |
Ø125 |
Ø80 |
Ø12 |
2900 |
45-55 |
1300×600×1200 |
500 |
JM-GMC 250a-2 |
2-50 |
5-20 |
Ø250 |
Ø125 |
Ø60 |
Ø12 |
2900 |
30 |
1200×550×1150 |
355 |
JM-GMC 250b-2 |
2-50 |
5-20 |
Ø250 |
Ø125 |
Ø60 |
Ø12 |
2900 |
37 |
1200×550×1150 |
395 |
JM-GMC 200a-2 |
2-50 |
5-10 |
Ø200 |
Ø100 |
Ø50 |
Ø12 |
2900 |
15 |
1150×550×1100 |
210 |
JM-GMC 200b-2 |
2-50 |
4-10 |
Ø200 |
Ø100 |
Ø50 |
Ø12 |
2900 |
22 |
1150×550×1100 |
235 |
JM-GMC 200c-2 |
2-50 |
4-12 |
Ø200 |
Ø100 |
Ø50 |
Ø12 |
2900 |
30 |
1150×550×1050 |
292 |
JM-GMC 180a-2 |
2-50 |
2-6 |
Ø180 |
Ø90 |
Ø40 |
Ø12 |
2900 |
11 |
1000×550×1050 |
170 |
JM-GMC 180b-2 |
2-50 |
2-6 |
Ø180 |
Ø90 |
Ø40 |
Ø12 |
2900 |
15 |
1000×550×1050 |
195 |
JM-GMC 180c-2 |
2-50 |
2-8 |
Ø180 |
Ø90 |
Ø40 |
Ø12 |
2900 |
22 |
1000×500×1000 |
200 |
JM-GMC 140a-2 |
2-50 |
1-4 |
Ø140 |
Ø66 |
Ø32 |
Ø12 |
2900 |
7.5 |
980×500×970 |
140 |
JM-GMC 140b-2 |
2-50 |
1-4 |
Ø140 |
Ø66 |
Ø32 |
Ø12 |
2900 |
11 |
980×500×970 |
172 |
JM-GMC 140c-2 |
2-50 |
1-4 |
Ø140 |
Ø66 |
Ø32 |
Ø12 |
2900 |
15 |
980×500×970 |
185 |
JM-GMC 130-2 |
2-50 |
0.7-3 |
Ø130 |
Ø65 |
Ø30 |
Ø12 |
2900 |
7.5 |
930×400×960 |
138 |
JM-GMC 120-2 |
2-50 |
0.7-2.5 |
Ø120 |
Ø65 |
Ø30 |
Ø12 |
2900 |
5.5 |
880×400×960 |
132 |
JM-GMC 100-2 |
2-50 |
0.5-2 |
Ø100 |
Ø65 |
Ø30 |
Ø12 |
2900 |
5.5 |
750×400×950 |
130 |
JM-GMC 90-2 |
2-50 |
0.5-1 |
Ø90 |
Ø50 |
Ø20 |
Ø12 |
2900 |
4 |
730×380×960 |
110 |
JM-GMC 80-2 |
2-50 |
0.5-1 |
Ø80 |
Ø47 |
Ø20 |
Ø12 |
2900 |
3 |
730×380×960 |
105 |
JM-GMC 65-2 |
2-50 |
0.2-0.5 |
Ø65 |
Ø47 |
Ø20 |
Ø8 |
2900 |
2.2 |
520×350×850 |
85 |
JM-GMC 60-2 |
2-50 |
0.02-0.2 |
Ø60 |
Ø32 |
Ø18 |
Ø8 |
2900 |
1.1 |
500×350×830 |
68 |
